Microphone capsule Primo EM272Z1 - Le Club Biotope

Microphone capsule Primo EM272Z1

FC101
Rupture de stock

€15.00 tax excl.

€18.00
Tax included

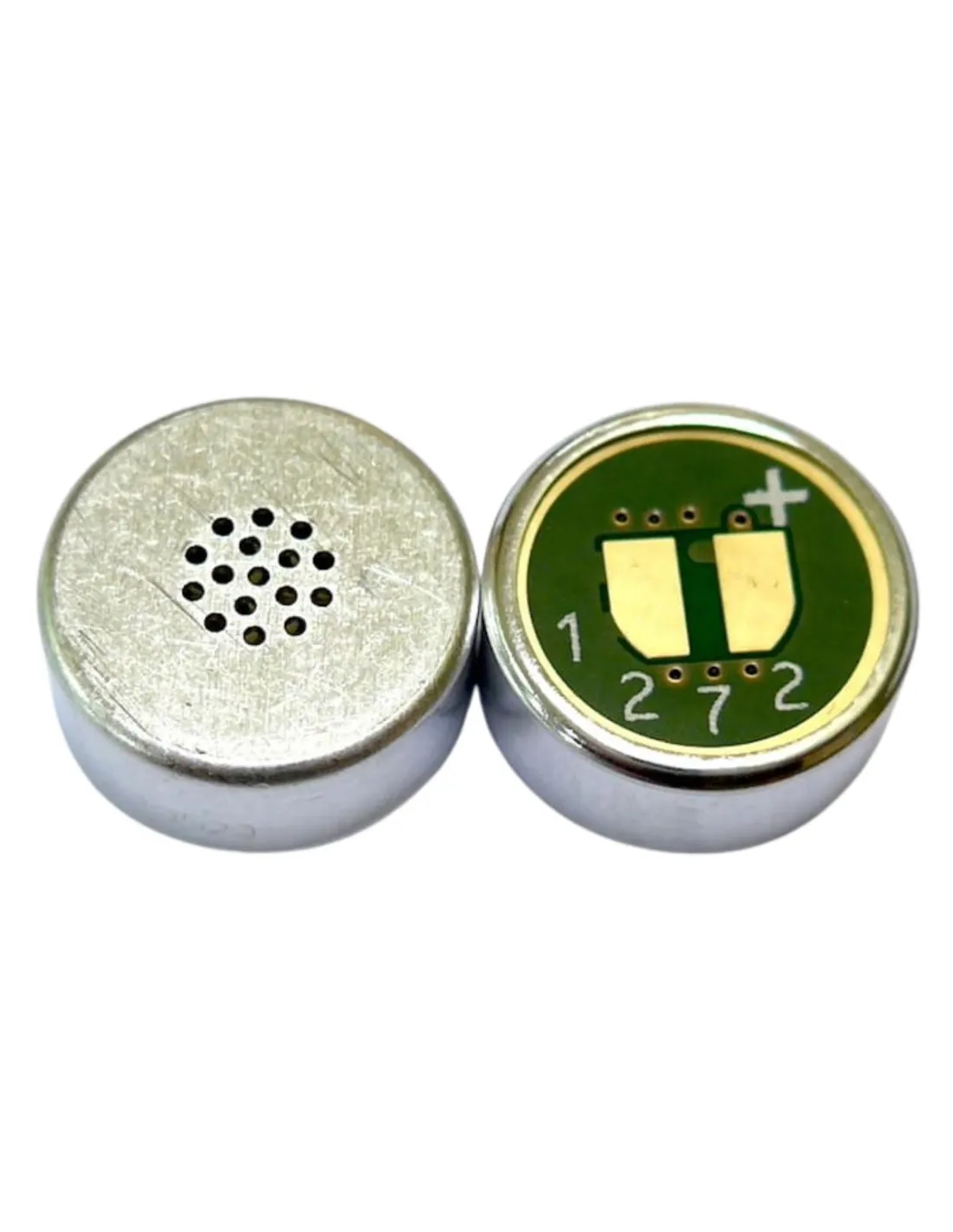

The Primo EM272Z1 capsule is an ultra-low noise, omnidirectional electret micro-capsule designed to capture faint and subtle sounds in the environment. Thanks to its high sensitivity and very low self-noise, it is especially well-suited for recording nocturnal bird migration: it effectively picks up flight calls even at long distances or in challenging acoustic conditions. This capsule is a reference choice for passive acoustic monitoring devices used in nocturnal migration studies.

We also offer ready-to-use models HERE.




Key Features

  • Omnidirectional electret condenser capsule
  • Ultra low self-noise (14 dBA)
  • High sensitivity to capture the most subtle sounds
  • Wide dynamic range ensuring natural sound reproduction
  • Ideal for recording nature sounds, ambient backgrounds, and environmental noise

Technical Specifications

  • Signal-to-noise ratio: 80 dB
  • Sensitivity: –28 dB ±3 dB (at 1 kHz, 0 dB = 1V/Pa)
  • Self-noise level: 14 dBA
  • Maximum Sound Pressure Level (SPL): 119 dB
  • Directionality: Omnidirectional
  • Connection: 2 wires (compatible with plug-in power via 3.5 mm microphone input)

Soldering and Assembly

  • Pads provided for solder connection
  • Built-in FET sensitive to overheating and overvoltage
  • Preferably use a low-power or temperature-controlled soldering iron (approx. 18 W)
  • Keep contact time between the soldering iron tip and pad as brief as possible

Applications

  • Nature and wildlife sound recording
  • Ambient/environmental sound capture
  • Capsule recommended in the “Vol de nuit” protocol for nocturnal migration monitoring (nocmig)
  • DIY microphones, stereo and binaural configurations
  • Compatible with portable recorders (Zoom, Tascam, Sony…) using plug-in power
