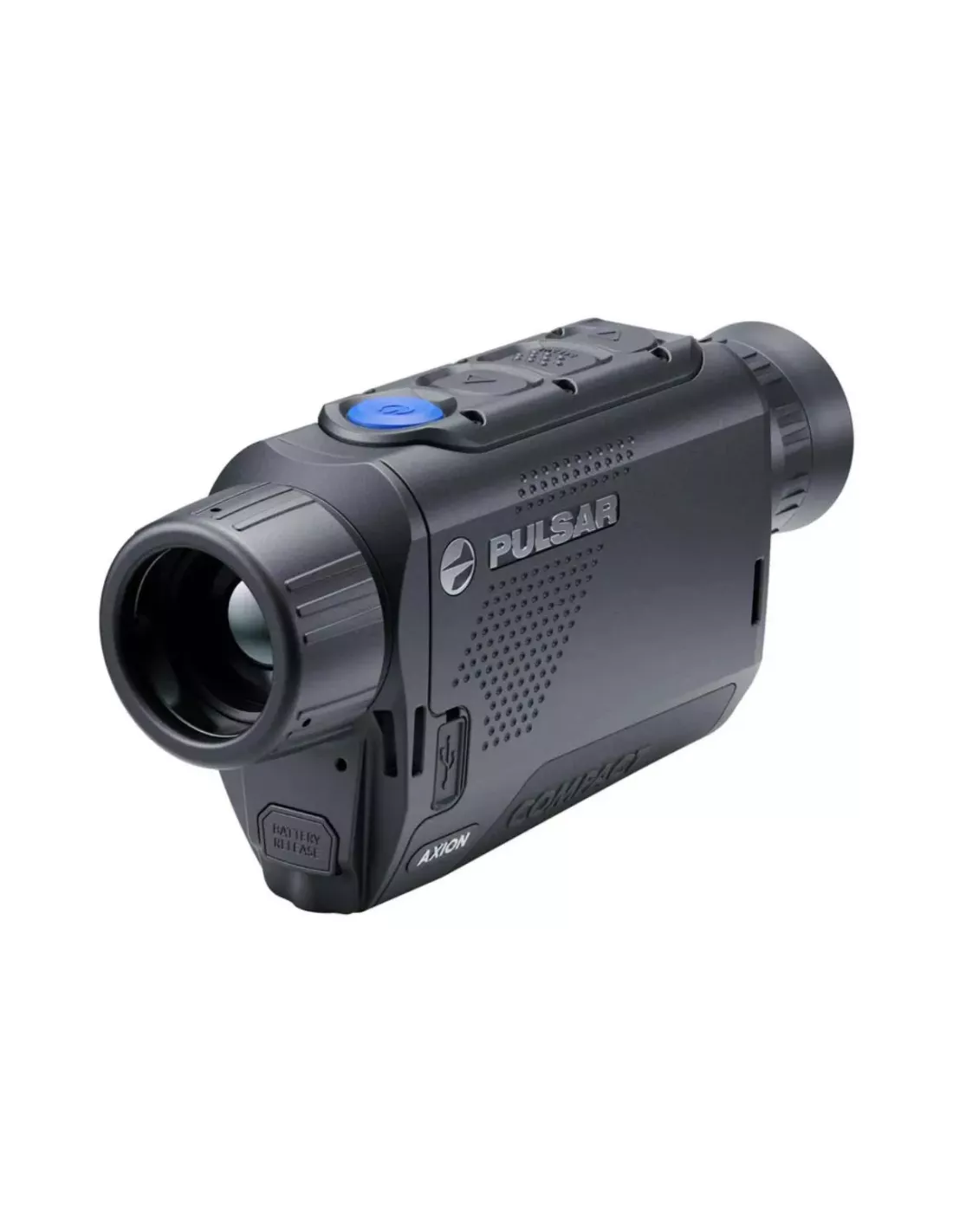

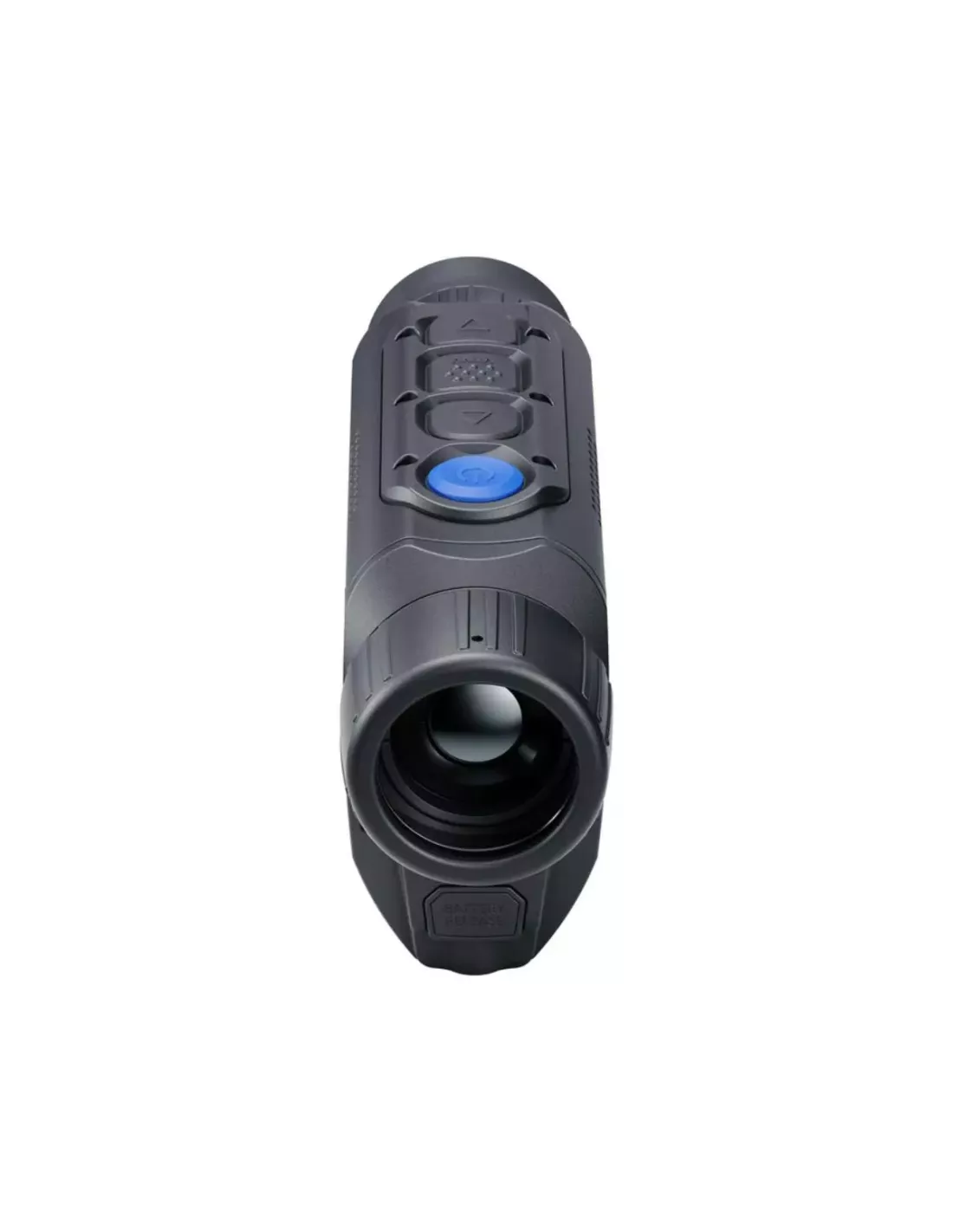

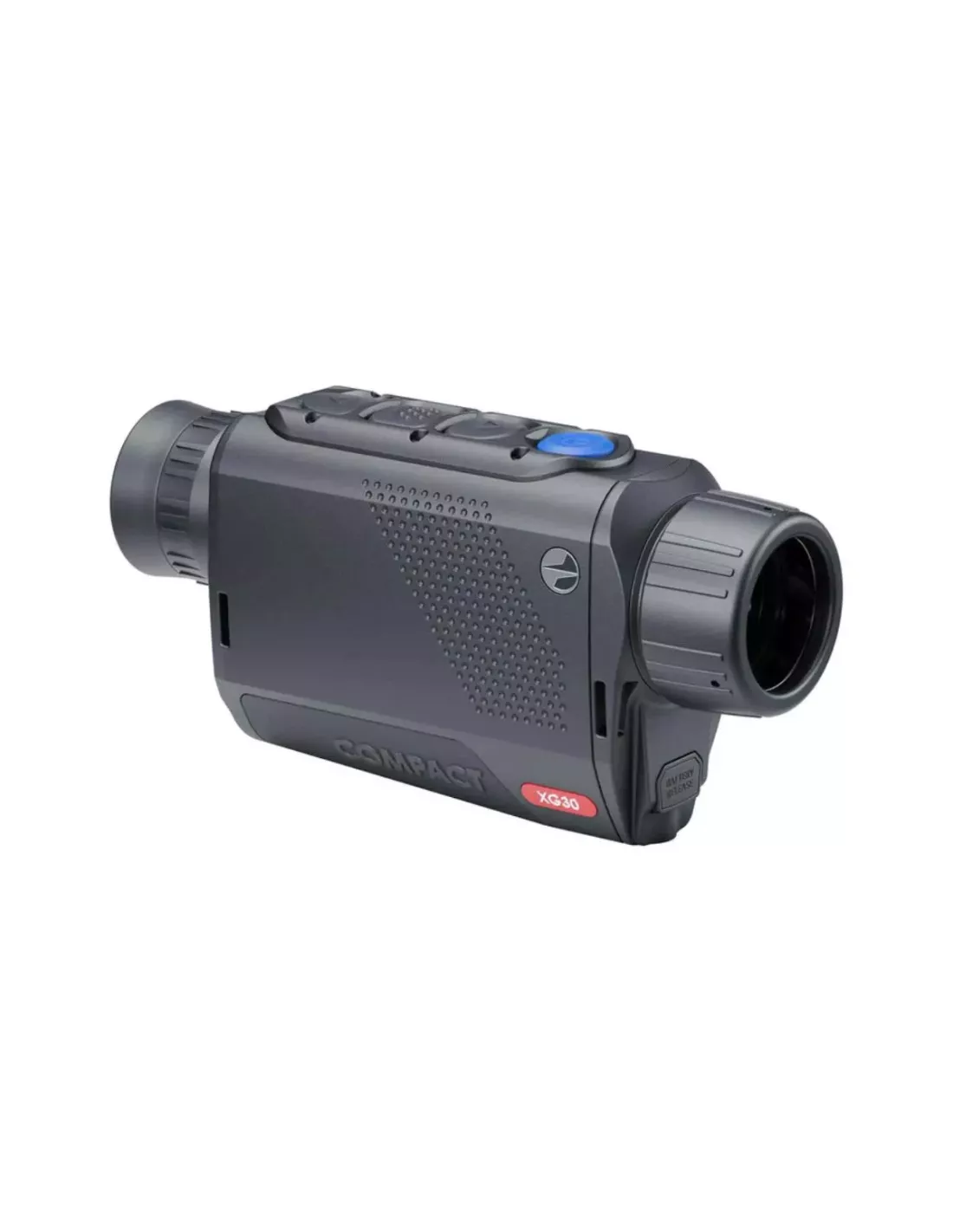

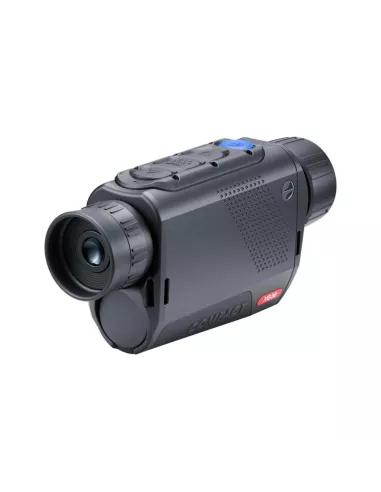

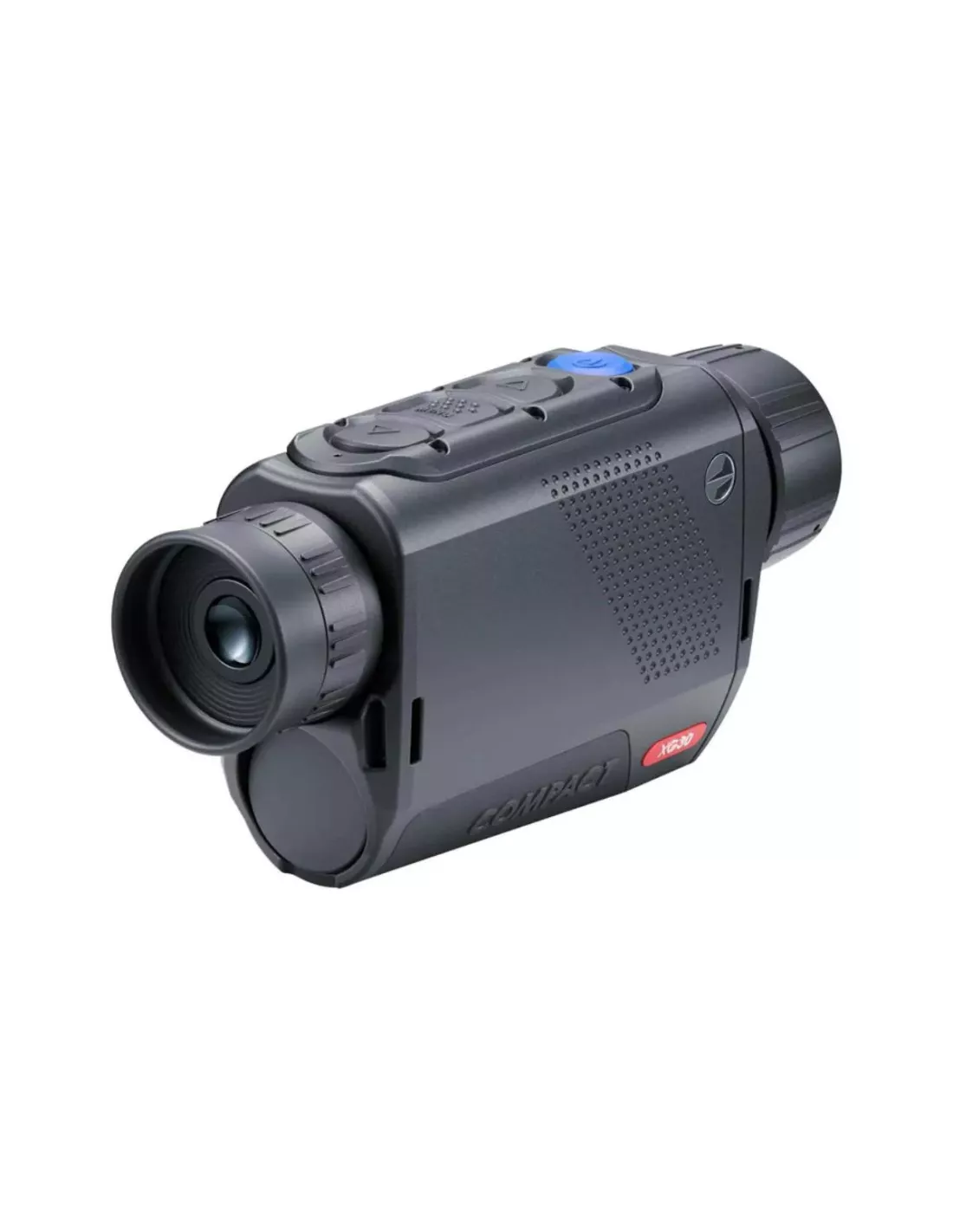

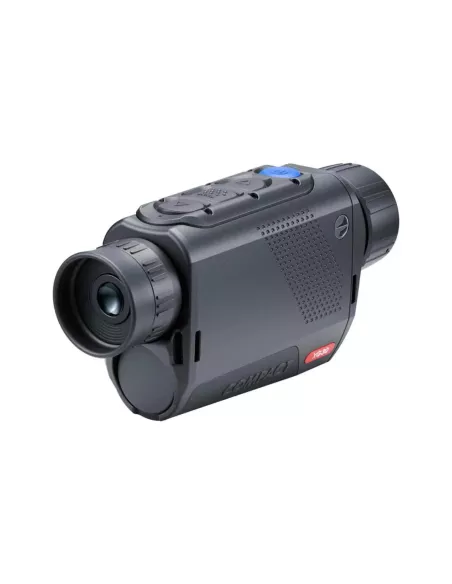

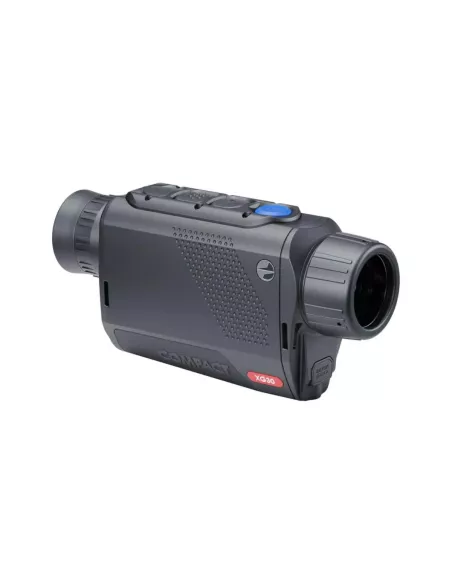

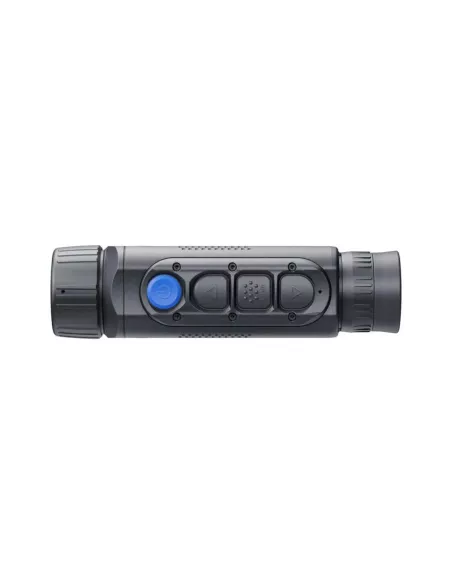

Thermal monocular Pulsar AXION XG30 Compact

Technical features

• Thermal sensor: 640 × 480 px, 12 µm pixel pitch, NETD < 40 mK
• Objective lens: 30 mm, F/1.2
• Optical magnification: 2x, digital zoom up to 16x (×8)
• Field of view: 14.6 × 9.2° (25.6 × 16 m at 1000 m)
• Detection range: up to 1300 m
• Display: 640 × 480 px AMOLED screen
• Recording: built‑in photo / video, 960 × 600 px, .jpg / .mp4, 64 GB internal memory
• Palettes: 8 colour palettes, 3 sensitivity levels
• Connectivity: Wi‑Fi 2.4 / 5 GHz, Stream Vision 2 app (iOS / Android)
• Power supply: Li‑Ion APS3 3200 mAh battery, approx. 7 h runtime, USB‑C charging
• Housing: magnesium alloy body, IPX7, -20 °C to +40 °C
• Interface: 1/4" tripod thread, Picture‑in‑Picture, user mode
• Size and weight: 144 × 41 × 69 mm, weight about 300 g

Naturalistic uses

• Outbreaks of dens and observations of bats (chiropterology) in addition to ultrasonic detection.
• Verification of the presence of animals in hollow trees, cavities, nest boxes and building cracks.
• Surveys in urban or peri-urban contexts thanks to the low magnification and wide field of view.
• Discreet spotting of small mammals, birds at the roost and other species in a nocturnal context.
