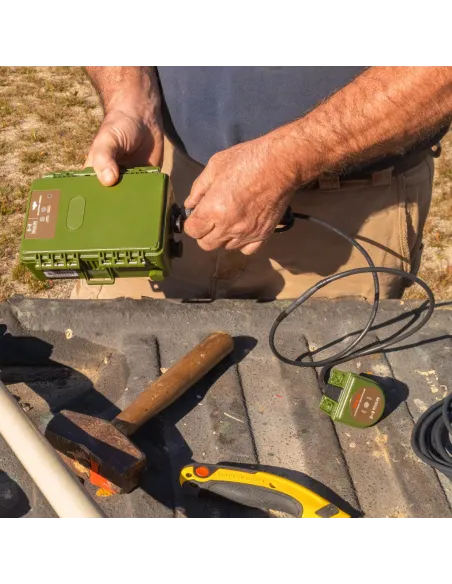

Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only
Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only

Passive ultrasonic and acoustic recorder SM5BAT Wildlife Acoustics - Case only

article diffusé
SM5BAT_SEUL
Out-of-Stock

€957.50 tax excl.

€957.50

AVAILABLE IN 2026

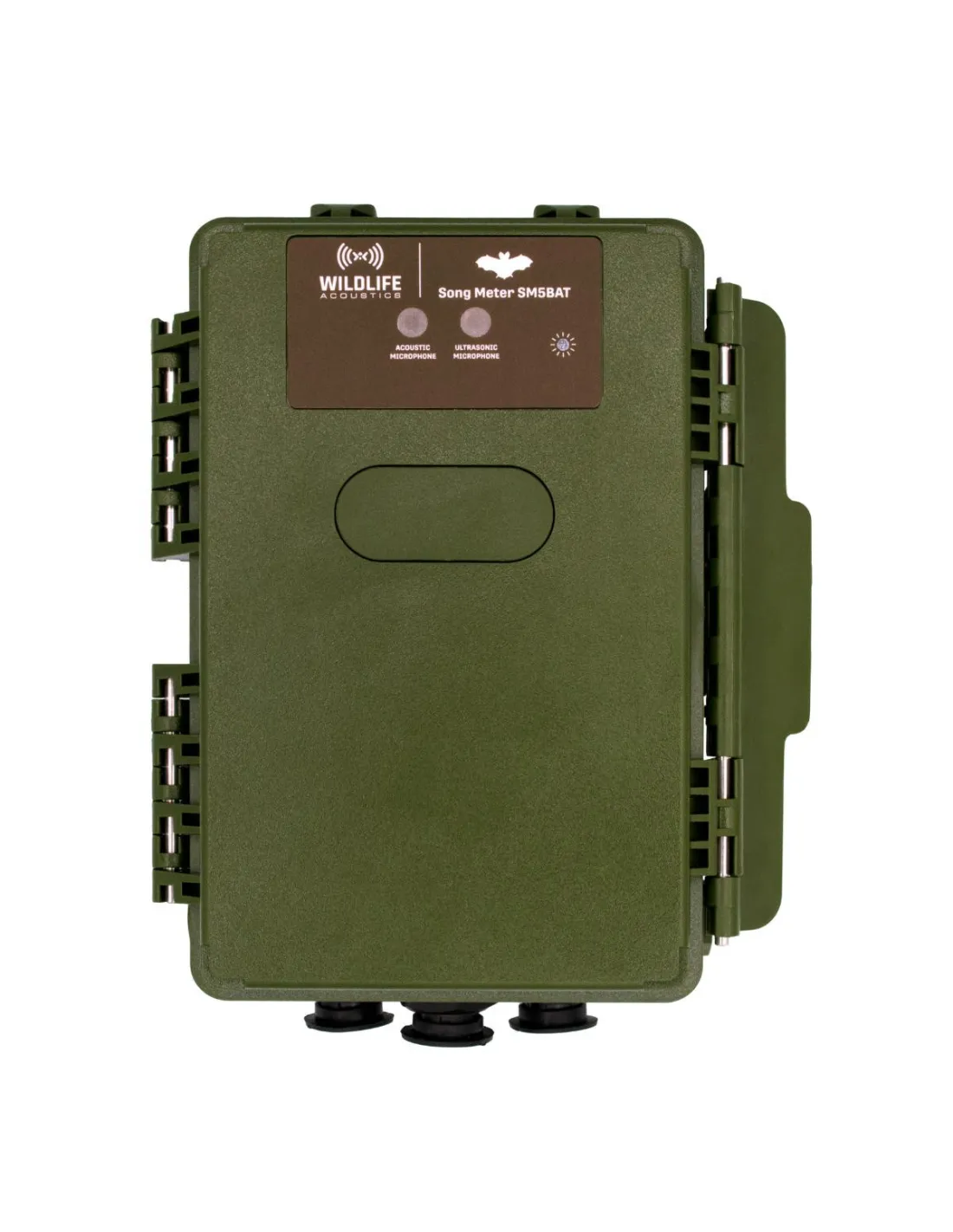

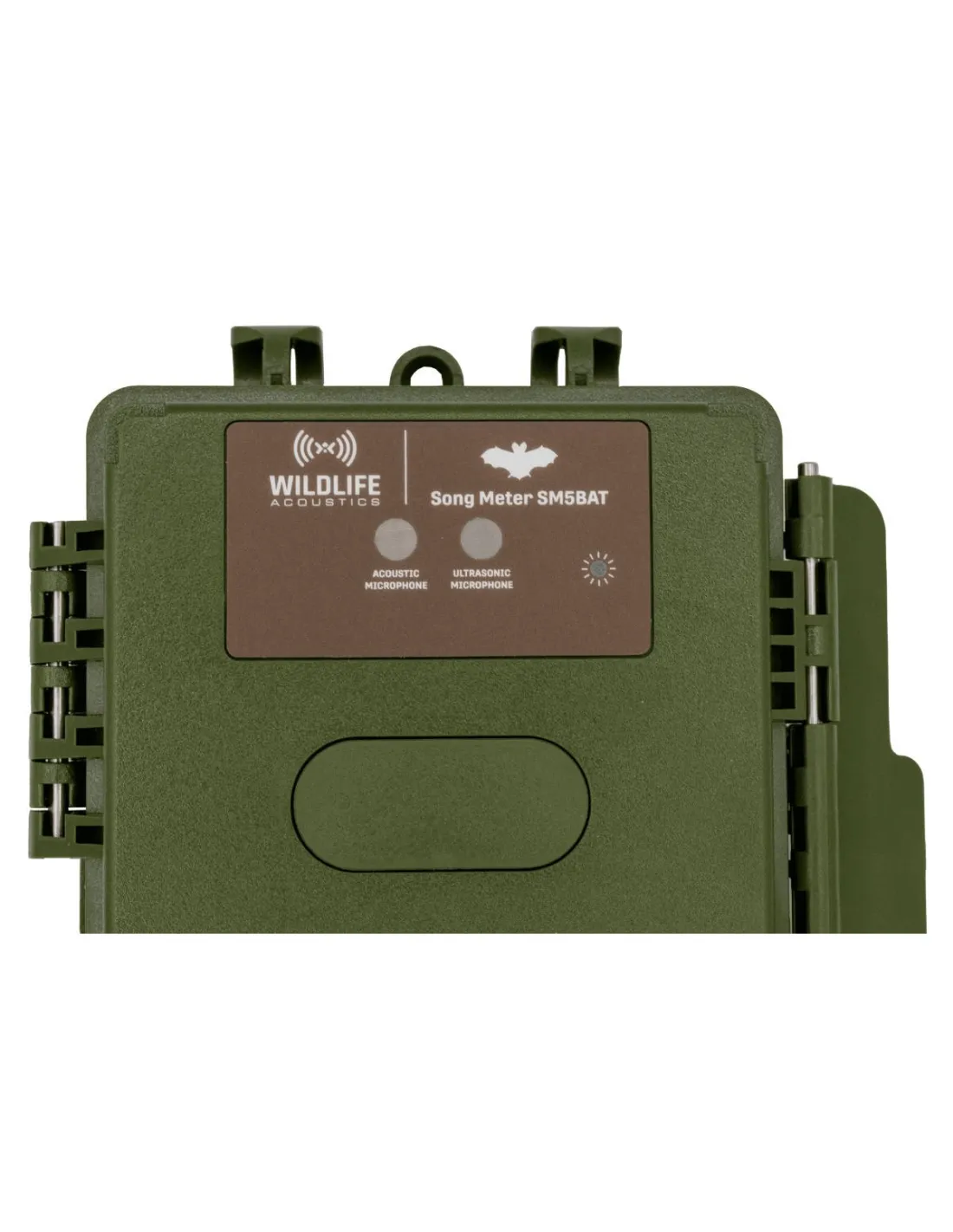

The SM5BAT is a next-generation multi-channel recorder designed for simultaneous acoustic and ultrasonic monitoring. It combines four recording channels—two ultrasonic and two stereo acoustic—enabling the surveillance of bats, birds, and other taxa with a single device. Its two built-in microphones (one ultrasonic and one acoustic) ensure simultaneous capture of signals, and a second ultrasonic mic can be added for independent dual-channel detection.

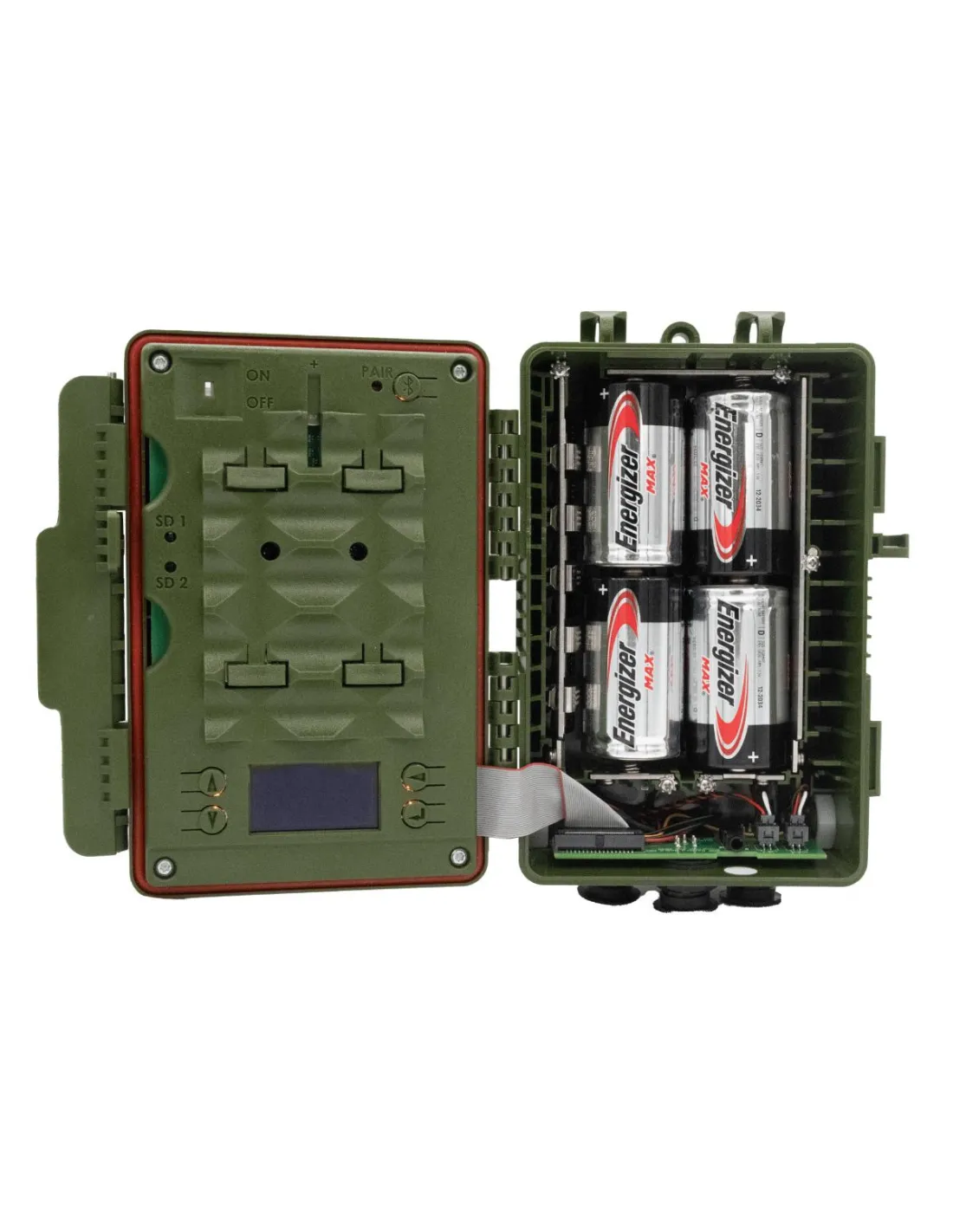

Engineered for extended deployments, the SM5BAT delivers record-breaking battery life thanks to a redesigned compartment compatible with lithium-ion or alkaline batteries, and it can be powered by solar panels via the Wildlife Acoustics Power Kit or another external source. Its reinforced IP67 enclosure and waterproof microphones guarantee total reliability in the harshest field conditions, while the integrated mic tester simplifies pre-deployment functionality checks.

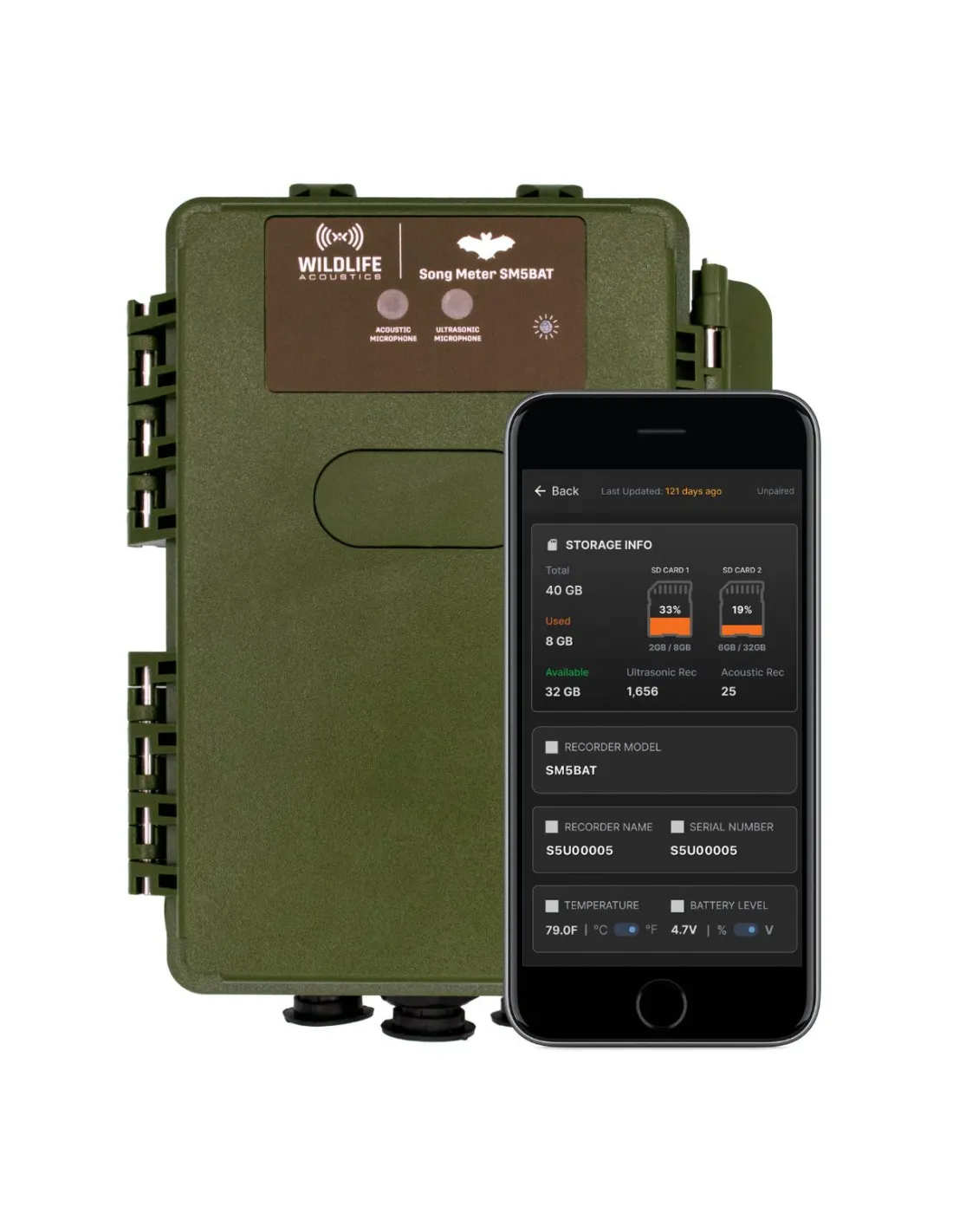

The device features a GPS/GLONASS module for high-precision time synchronization (30 microseconds) across multiple units and accurate sound emission geolocation. Configuration is simple and fast via Bluetooth connectivity and the Song Meter Configurator mobile app (iOS/Android), which allows creating recording schedules and estimating deployment durations.



TO STAY INFORMED ABOUT THE SM5 RELEASE: please fill out this form.




Main features

  • Ultrasonic channels: 2, independently triggered
  • Acoustic channels: 2 (mono or stereo)
  • Built-in microphones: 2 (1 ultrasonic + 1 acoustic)
  • Simultaneous recording: Yes (ultrasonic + acoustic)
  • Recording formats: Full-spectrum WAV and/or Zero Crossing



Audio performance

  • Ultrasonic sampling rates: 256, 384, 500 kHz
  • Acoustic sampling rates: 8, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96 kHz
  • Capture technologies:
    • Low-noise microphones
    • Advanced triggering
    • Adjustable noise scrubbing



Power and battery life

  • Battery life (2 ultrasonic channels, multi-band triggering):
    • Up to 150 ten-hour nights (with 11× Li-ion 18650)
    • Up to 70 ten-hour nights (with 4× D alkaline)

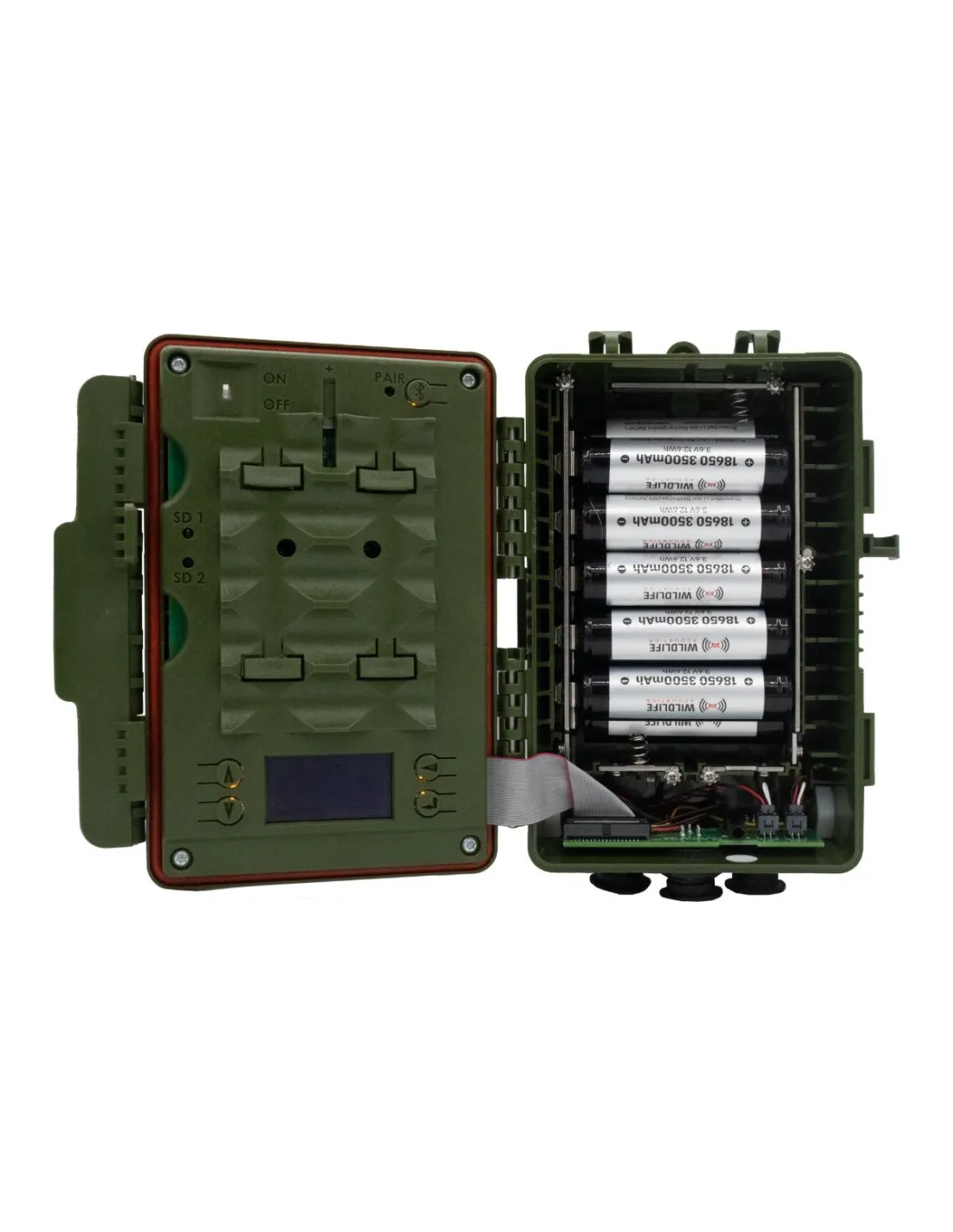

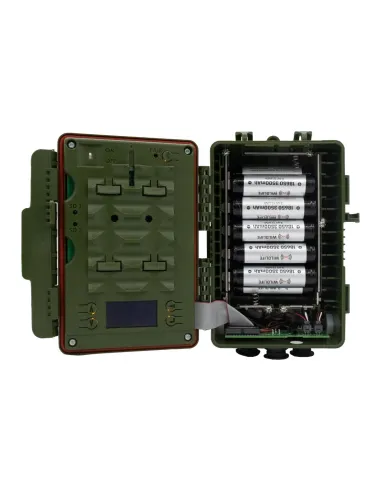

  • Battery compatibility: 1–6 or 11× Li-ion 18650 / 4× D alkaline
  • Solar compatibility: Yes (Wildlife Acoustics Power Kit and others)
  • External power: Supported



Positioning and synchronization

  • Built-in GPS: Yes (GPS/GLONASS)
  • GPS time synchronization accuracy: 30 microseconds
  • Location data stored in metadata: Yes



Storage

  • SD slots: 2
  • Maximum capacity: Up to 2 TB each (4 TB total)
  • Compatible card formats: SDHC / SDXC



Connectivity and configuration

  • Built-in Bluetooth®: Yes
  • Configuration via mobile app: Song Meter Configurator (iOS/Android)

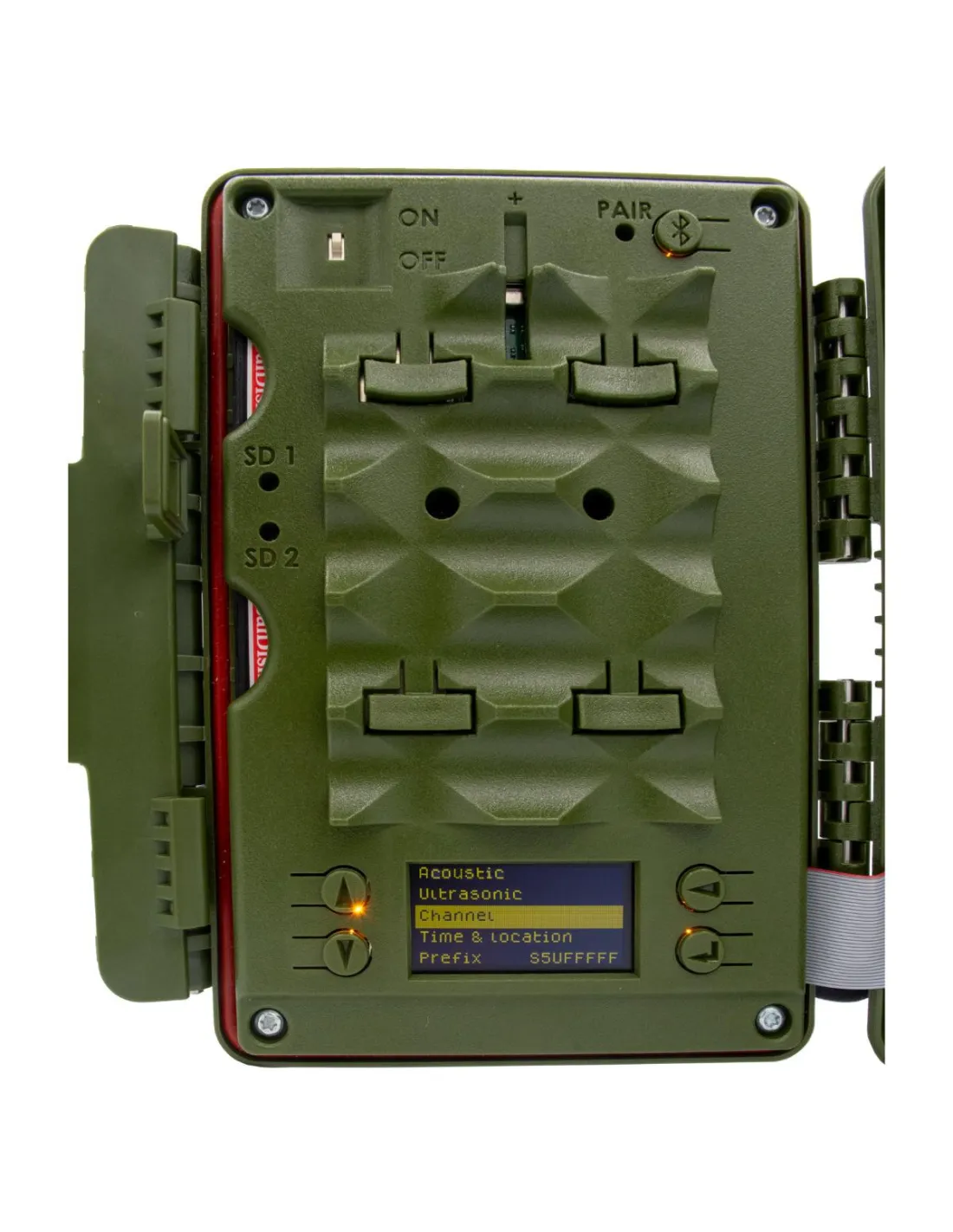

  • Local configuration: Integrated buttons and screen
  • Scheduling (“Quick Start” and custom schedules): Yes
  • Expansion port: Yes (for cellular module and future add-ons)
  • Remote access (cellular): Planned for late 2026



Environmental and durability

  • Protection rating: IP67 (housing and microphones)
  • Housing material: Polycarbonate
  • Operating temperature: –20 °C to +85 °C (depending on battery type)



Dimensions and weight

  • Dimensions (H × W × D): 191 × 134 × 64 mm (7.5 × 5.3 × 2.5 in)
  • Weight (with batteries):
    • 1109 g (11× Li-ion 18650)
    • 1134 g (4× D alkaline)



Microphone compatibility

  • Ultrasonic microphones: SMM‑U2, SMM‑U1
  • Acoustic microphones: SMM‑A2, acoustic stub microphones



Miscellaneous information

  • Warranty: 3 years (microphones included)
Brand
Wildlife Acoustics
Warranty
3 ans
